Cast Aluminum Hay Pulley Wireline Pressure for Control Direction

Name: Cast Aluminum Hay Pulley Wireline Pressure for Control Direction
Brand: Ruixin
Price: 1 USD

Wholesale Cast Aluminum Hay Pulley Wireline Pressure for Control Direction from china suppliers

Brand Name : Ruixin

Model Number : 12 inch 14inch 16inch 20inch

Certification : API

Place of Origin : China Baoji

MOQ : 1

Payment Terms : T/T

Supply Ability : 1 set 3 weels

Delivery Time : 2-4 weeks

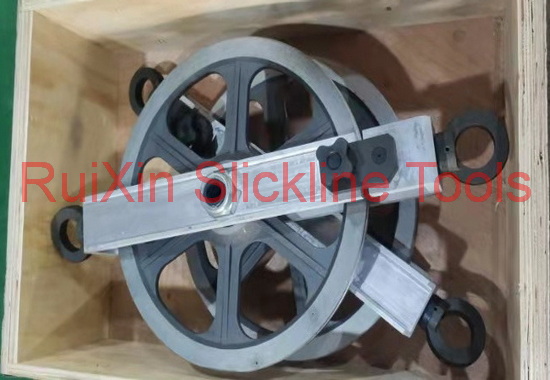

Packaging Details : Wooden Box

Name : Wireline Hay Pulley Wellhead Wireline Pressure Control

Material : Cast aluminum

Sheave Size : 12inch~20inch

Operation : Wireline operation and slickline operation

Use : Well intervention

Wireline PCE : Wireline Hay Pulley

Contact Now

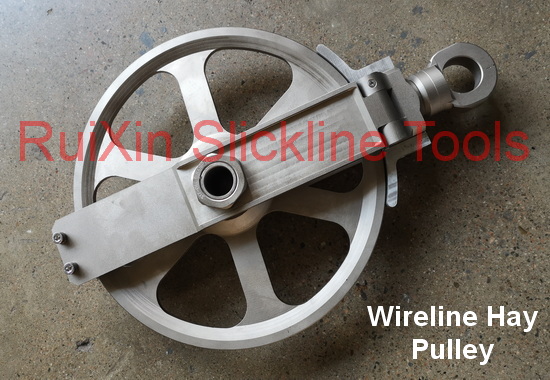

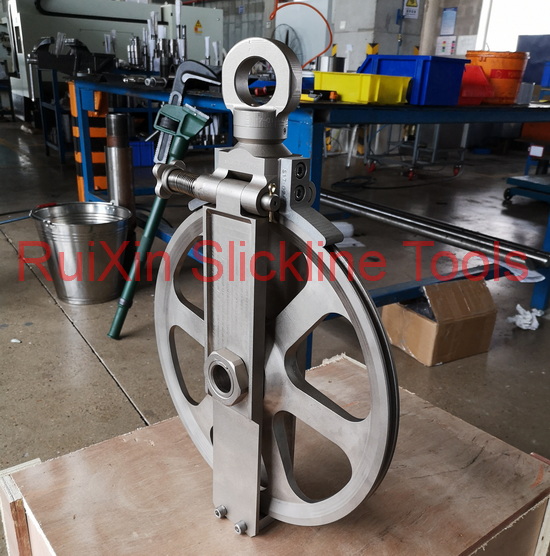

Cast Aluminum Hay Pulley Wireline Pressure for Control Direction

Introduction

The Hay Pulley is the top and bottom sheave used in wireline pressure control operation. The Hay Pulley is applied for controlling and manipulating the direction of the wireline from a horizontal positon to a vertical position in route to the stuffing box from the wireline unit. The slick line pulldy is generally positioned at the wellhead on the lubricator to reduce side pull force and to avoid lateral loading of the lubricator during heavy jarring operations.

In the hay pulley, top Sheave is a rope guiding device has adjustable center distance,and the bottome sheave is a rope guding device which can universal rotation.The slickline pass through the top and bottom sheave connect to the well test winch drum,which can control the slickline tools pulling into the well

Size	Wire sie	Safe working load
12"		TBA.
14"	7/32" 5/16"
16"	7/32" 5/16" 15/32"	20KN

Cast Aluminum Hay Pulley Wireline Pressure for Control Direction
