Wireline Pressure Control Equipment Alloy Steel Wellhead Flange

Name: Wireline Pressure Control Equipment Alloy Steel Wellhead Flange
Brand: Ruixin
Price: 1 USD

Wholesale Wireline Pressure Control Equipment Alloy Steel Wellhead Flange from china suppliers

Brand Name : Ruixin

Model Number : 2.5inch ID 3inch ID 4inch ID 5inch ID

Certification : API

Place of Origin : China Baoji

MOQ : 1

Payment Terms : T/T

Supply Ability : 1 set 2 weeks

Delivery Time : 2-3 weeks

Packaging Details : Wooden Box

Application : Wellhead Flange Wireline Pressure Control Equipment Alloy Steel

Size : 2.5inch ID 3inch ID 4inch ID 5inch ID

Material : Alloy Steel&Nickel Alloy

Connection Type : O&B

Function : allows for only the joint that was broken to be tested, without filling the whole lubricator system

Work Pressure : 3k 5k 10k 15k

Use : Wireline &Slickline

Service : Standard&H2S

Contact Now

Wellhead Flange Wireline Pressure Control Equipment Alloy Steel

Wireline Wellhead Flange Wireline Pressure Control Equipment

I. Overview

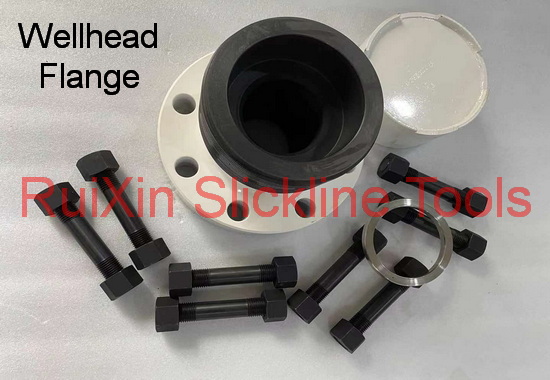

The wellhead flange is used to connect the tubing pin with the wellhead, with the upper part connected to the tubing pin and the lower part

connected to the wellhead. The wellhead flange is connected by bolts and nuts. When in use, the gasket is placed between the sealing surfaces.

After the nut is tightened, the specific pressure on the gasket surface reaches a certain value, and then the gasket is deformed, and the uneven

part on the sealing surface is filled, so that the connection is tight without leakage.

Wireline Pressure Control Equipment Alloy Steel Wellhead Flange

II the pressure test:

The wellhead flange shall be periodically tested for compressive strength, and the test pressure shall be 1.5 times of the working pressure.

1. Install the pressure test joint and connect the pressure test pipeline;

2. Start the pressure test pump for pressure test: press it to the test pressure, hold it for 15 minutes without leakage, and fill in the test record card.

III. Routine maintenance:

1. The pressure test shall be conducted regularly;

2. When temporarily not in use, it should be stored with silk protector.

Welcome to contact us at any time.
